EV90P30-H6PR-1024
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: EV90P30-H6PR-1024

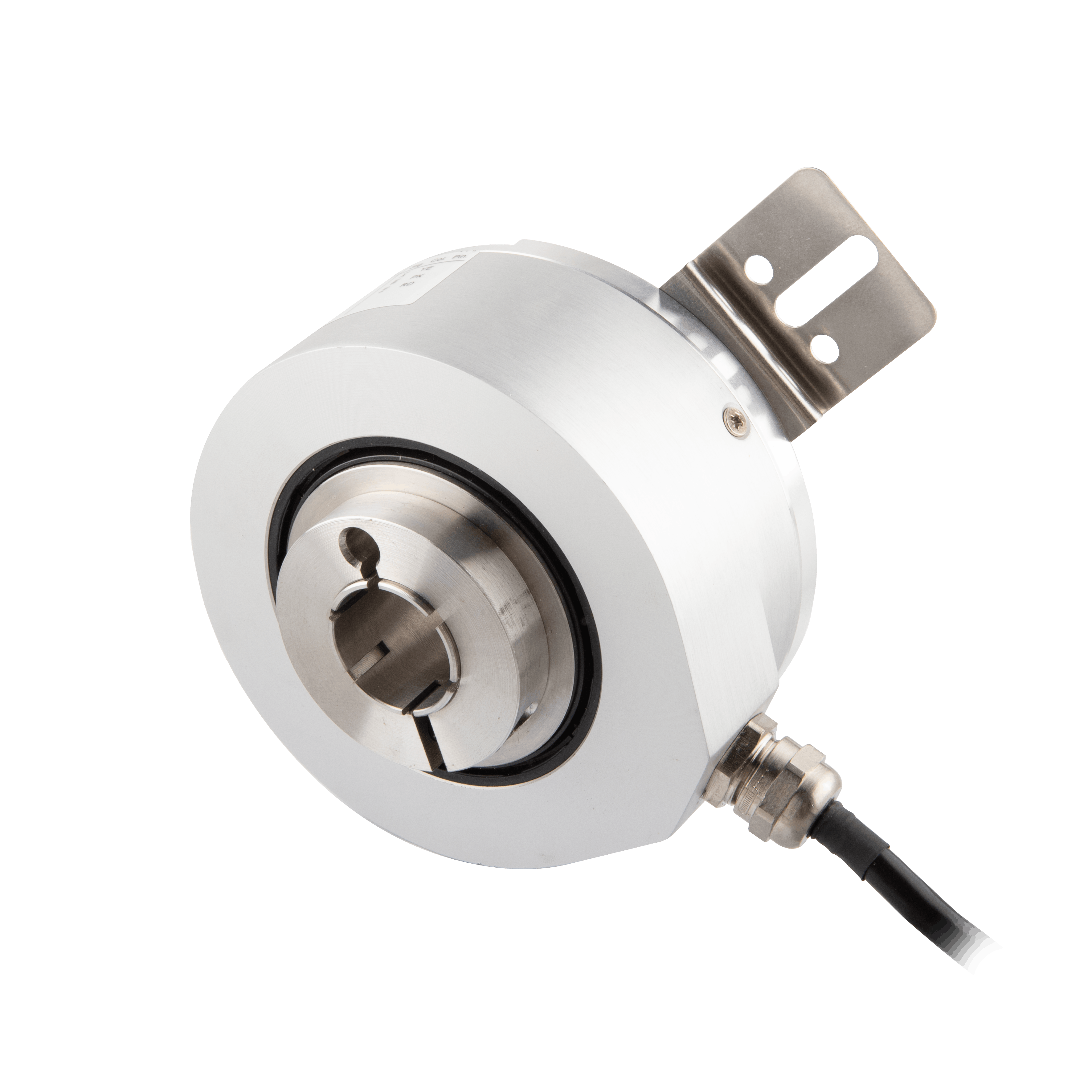

Hollow shaft incremental encoder, Heavydic Series EV90, Fixing sheet, Through hollow Shaft 30H7 mm, 10...30 V DC, Output Push-pull(with inverted signal), Cable 1.5 m, Resolution 1024
Key featuresDownloads
  • Pulse frequency300 kHz
  • Cable length1.5 m
  • Flange typeFixing plate
  • Max load capacity of the shaft80 N Axial
    140 N Radial
  • Max Speed(rpm)6000 rpm
  • Shaft typeThrough hollow shaft
  • Shaft diameter30 mm
  • ModelIncremental encoder
  • Connection typeCable outlet
  • Housing materialAl-alloy
  • Permissible load(channel)±40 mA
  • Housing diameter90 mm
  • IP ratingIP66
  • Ambient temperature-20 ... +80 °C
  • Output logicPush-pull HTL with inverted signal
  • Supply voltage10 ... 30 V DC
  • Resolution1024 ppr
  • Vibration resistance10 g, 10 ... 2000 Hz
  • Relative humidity/condensation90 % Condensation not permitted
  • Weight900 g
  • Starting torque＜ 0.1 Nm
  • Moment of inertia15 x 10-6 kgm2
  • Shock resistance50 g, 11 ms
