FCEN-8LKM-8A-M
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison

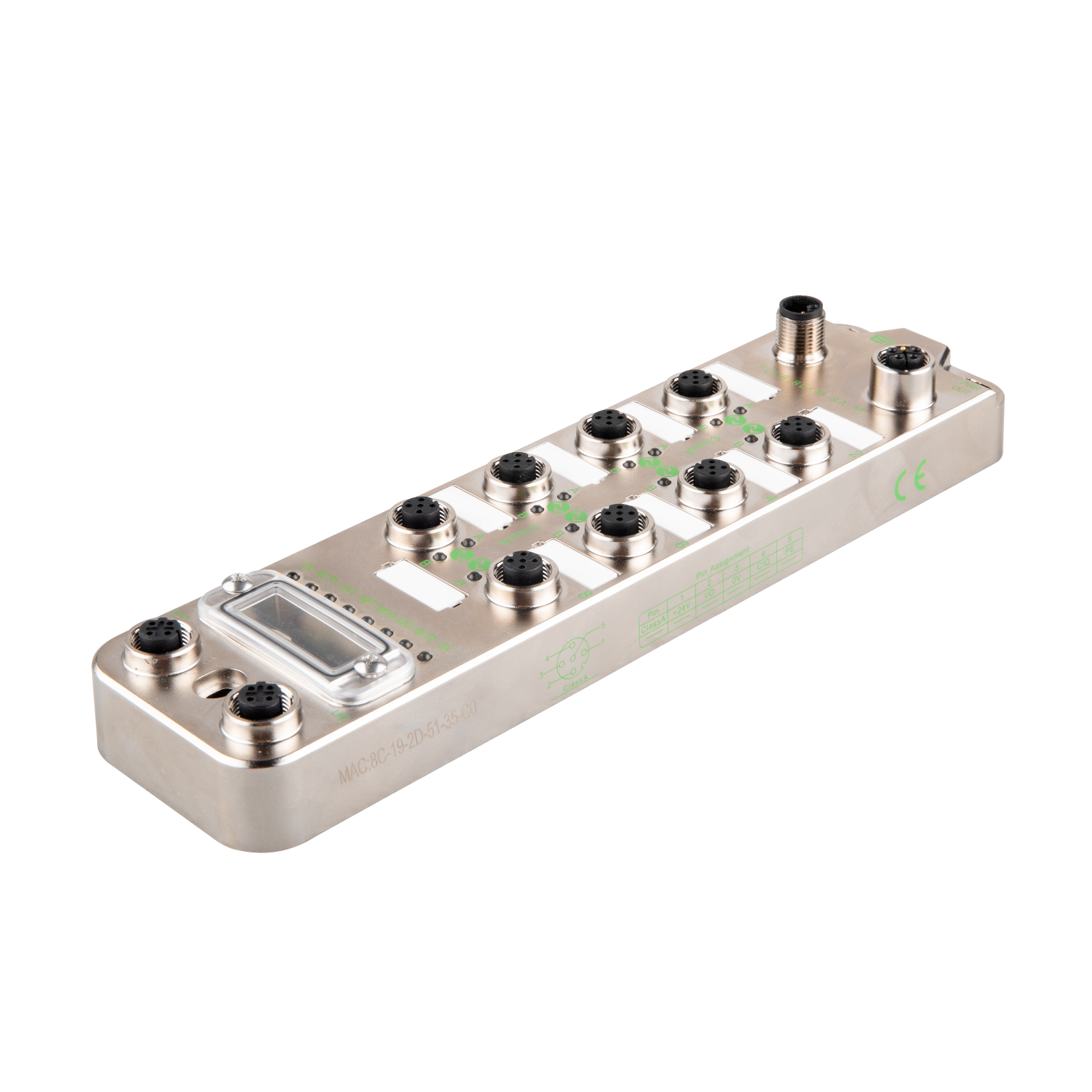

Product number: FCEN-8LKM-8A-M
IO-Link Master, Multiprotocol, PROFINET / EtherNet/IP, Webserver, 8 x Class-A, IO-Link V1.1.3, Max. 16 DI / 8 DO, 8 x M12 A-code 5-pin, 2 x M12 D-code 4-pin, 2 x M12 L-code 5-pin, 24 V DC, Metal housing, IP67
Key featuresDownloads
  • Communication protocolPROFINET, EtherNet/IP, ModbusTCP, CC-Link IE Field Basic
  • IP ratingIP67
  • Housing materialDie-cast Zinc
  • Power connection2 x M12 L-Code
  • Fieldbus connection2 x M12 D-Code
  • Power supply18 ... 30 V DC
  • Extension port8 x IO-Link
  • Signal connection8 x M12 A-Code
  • Signal typeIO-Link, Digital I/O
  • Number of channels8 Class-A, 8 DI + 8 DI/DO
  • Input typePNP
  • Output typePNP
  • Dimensions60 x 230 x 32.6 mm
  • Ambient temperature-25 ... +70 °C
  • Storage temperature-40 ... +85 °C
  • CertificateCE
