EV40A6-H6PR-1000.CN0100
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: EV40A6-H6PR-1000.CN0100

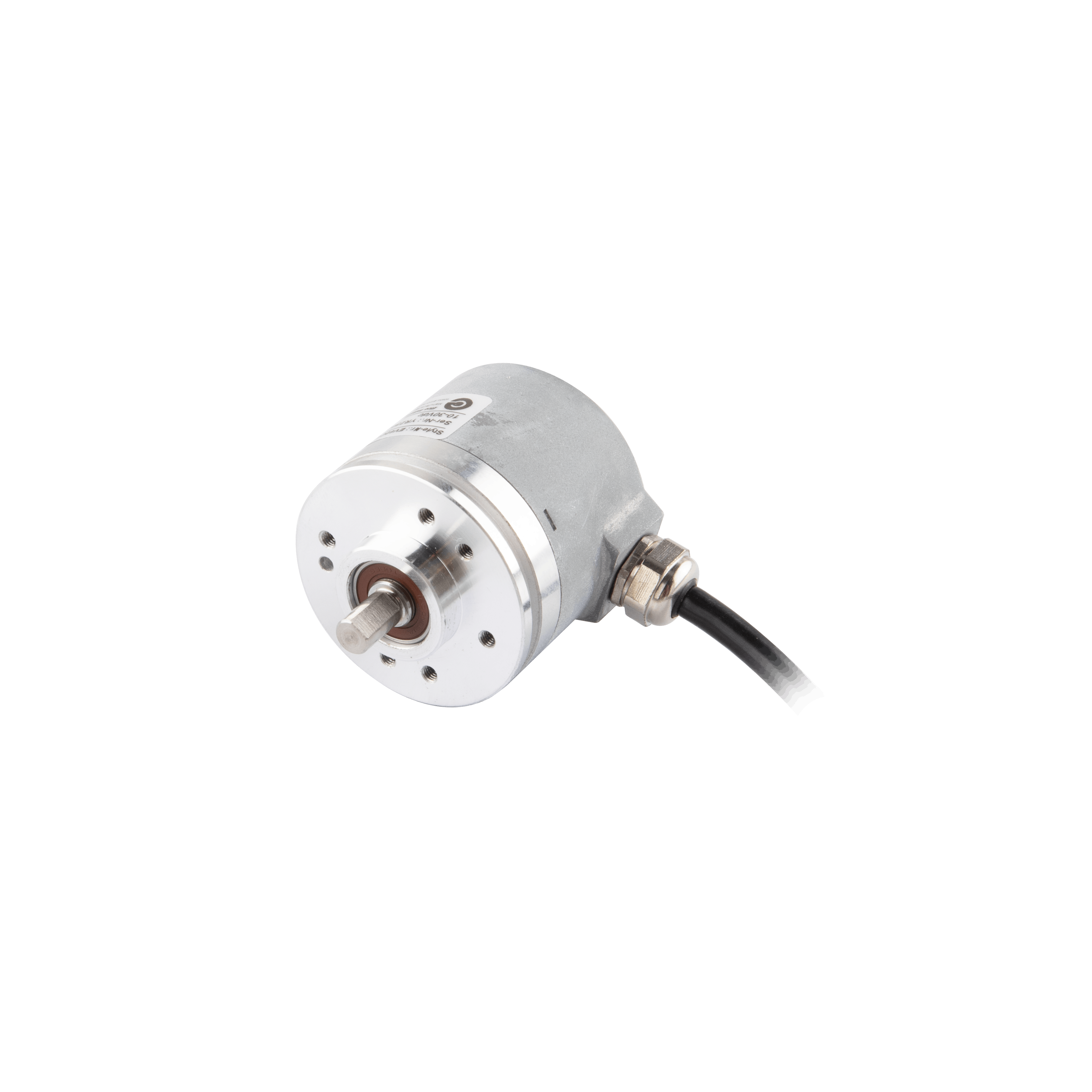

Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6 mm, 10...30 V DC, Output Push-pull HTL (with inverted signal), Cable 10 m, Resolution 1000
Key featuresDownloads
  • ModelIncremental encoder
  • Housing materialAl-alloy
  • Housing diameter40 mm
  • IP ratingIP66
  • Flange typeClamping flange
  • Shaft typeSolid shaft
  • Shaft diameter6 mm
  • Max load capacity of the shaft60 N Axial
    100 N Radial
  • Max Speed(rpm)6000 rpm
  • Moment of inertia1.9 x 10-6 kgm2
  • Starting torque＜ 0.08 Nm
  • Shock resistance50 g, 11 ms
  • Vibration resistance10 g, 10 ... 2000 Hz
  • Relative humidity/condensation90 % Condensation not permitted
  • Ambient temperature-20 ... +85 °C
  • Weight110 g
  • Resolution1000 ppr
  • Supply voltage10 ... 30 V DC
  • Output logicPush-pull HTL with inverted signal
  • Permissible load(channel)±30 mA
  • Pulse frequency800 kHz
  • Connection typeCable outlet
  • Cable length10 m
